COXDOME Pyramid Rooflight For Flat Roofs

Coxdome Pyramid Rooflight for flat roof features a universal design which provides easy installation as well as high performance. Designed with a modular structure allowing a variety of configurations, the thermally broken frame manufactured from plastic profiles ensures a strong thermal performance and resilience to condensation formation.

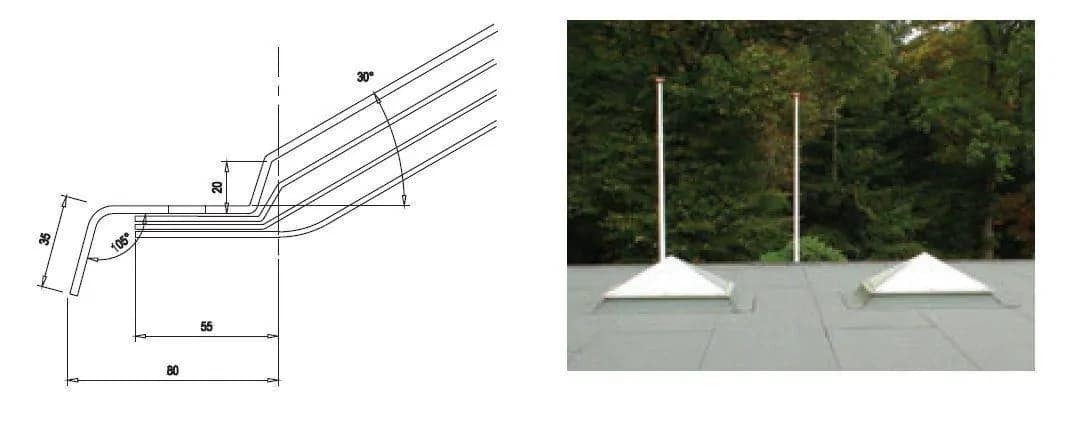

All pyramid rooflight domes are thermoformed to a 30° angle and are available with 150mm Upstands.

For effective heat insulation, our triple glazed fixed roof lights have a U-value of 1.8 W/m²K, the Glazing is constructed from double or triple layer Polycarbonate plastic which meets Part L 2013 requirements.

NOTE: Structural opening for this rooflight is the size of the rooflight. i.e 600x600mm rooflight = structural opening of 600x600mm

Product downloads

Here you will find all downloadable content for this particular product. Believe something is missing? Get in touch.

Technical information

Specification

	Glazing	Light Transmission	‘G’ Value	‘U’ Value	Sound Reduction (dB)	Fire classification	Impact Resistance
	Clear	77%	67%	2.6 W/m²K*	20dB	1-3mm: B-s1-d0	> 200 N/mm2
	Diffused	77%	67%	2.6 W/m²K*	20dB	1-3mm: B-s1-d0	> 200 N/mm2
	Clear	71%	57%	1.7 W/m²K*	22dB	1-3mm: B-s1-d0	> 200 N/mm2
	Diffused	71%	57%	1.7 W/m²K*	22dB	1-3mm: B-s1-d0	> 200 N/mm2

Upstand

	Height	Material	Profile Width	‘U’ Value	Fire Resistance
	150mm	PVC-u	25mm	1.8 W/m2K	D-s3-d1

Dimensions

Delivery & returns information

Free Delivery to Mainland UK during normal weekday working hours. Delivery charges may apply to other areas of the UK. Delivery costs will be update at checkout if required. Rooflights are assembled to order and are usually delivered within 2-3 working days from Order (during weekday working hours only), except for Rooflight sizes 1000x1500mm and 1200x1800mm which are on a 5-7 working day lead-time from Order.
